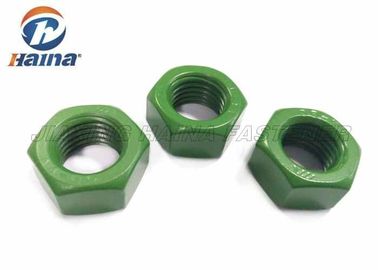

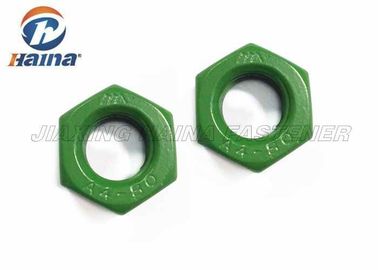

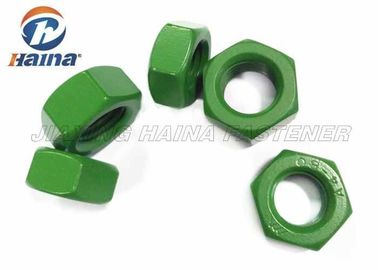

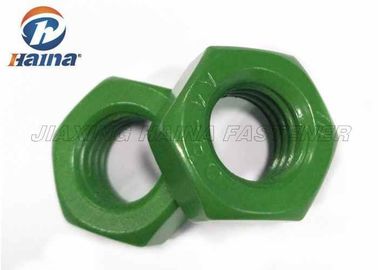

Name: PTFE Finish Anti Corrosion Hex Head Nuts , DIN934 stainless steel fasteners Green Whitford PTFE
Brand: Jiaxing Haina Fastener Co.,Limited
SKU: M6-M48
Availability: InStock

होम उत्पाद हेक्स हेड नट

PTFE Finish Anti Corrosion Hex Head Nuts , DIN934 stainless steel fasteners Green Whitford PTFE

उत्पाद विवरण:

Place of Origin:	CN
ब्रांड नाम:	HNF
प्रमाणन:	ISO9001:2008
Model Number:	M6-M48

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	1000 piece
मूल्य:	negotiable
Packaging Details:	Common export packing. Cartons+Pallets, or customized packing. Bag Packing
Delivery Time:	10-20 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	500 tons per month

संपर्क करें

विस्तृत उत्पाद विवरण

Product:	Stainless Steel 316 DIN934 with Green Whitford PTFE	Head Drive:	Hexagonal
Standard:	DIN ANSI JIS Bsw	Surface:	Green Whitford PTFE
Material:	Stainless steel 316	Head:	Hex Head
HS Code:	731816	Inspection:	100%QC
Connection:	Common nut
प्रमुखता देना:	Heavy Hex Nut , Hex Flange Nuts

PTFE Finish Anti Corrosion Hex Head Nuts , DIN934 stainless steel fasteners Green Whitford PTFE

Description:

Hex Head Nut play the role of a component of all manufacturing machinery. It fastener other components. There are kinds of nut. We have common national standard, German standard, the British standard, American Standard, the subject of the nut. There are many kinds of lock nut. Hex Head Nut is very common.

Specification:

Commodity Name:	PTFE Finish Hex Head Nuts Anti Corrosion Stainless Steel 316 DIN934 with Green Whitford PTFE
Standard:	DIN934 ,A194,AISI ASTM B18.2,Nonstandard bolt(according to your drawing),etc
Material:	Stainless steel 304 316
Grade:	4.8 6.8.8.8 10.9 12.9,A2-70,A4-80etc
Surface Finish:	Black,Zinc plated,Copper plating,Phosphating,Mechanical galvanized,hot dipped galvanized,daromet etc
Size:	M3-M30;1/4"-2"
Supply Ability:	500MT per month
Certificate:	ISO9001:2008; SGS,CE,
Packing:	20-25Kg per Carbon, 36-64Carbon/Pallet or according to client’s requirement
Delivery :	20days per container for the usual size.

D	P	m		S
D	P	max	min	max	min
M1	0.25	0.8	0.55	2.5	2.4
M1.2	0.25	1	0.75	3	2.9
M1.4	0.3	1.2	0.95	3	2.9
M1.6	0.35	1.3	1.05	3.2	3.02
M1.7	0.35	1.4	1.15	3.5	3.38
M2	0.4	1.6	1.35	4	3.82
M2.3	0.45	1.8	1.55	4.5	4.32
M2.5	0.45	2	1.75	5	4.82
M2.6	0.45	2	2.15	5	4.82
M3	0.5	2.4	2.55	5.5	5.32
M3.5	0.6	2.8	2.9	6	5.82
M4	0.7	3.2	3.7	7	6.78
M5	0.8	4	3.7	8	7.78
M6	1	5	4.7	10	9.78
M7	1	5.5	5.2	11	10.73
M8	1/1.25	6.5	6.14	13	12.73
M10	1/1.25/1.5	8	7.64	17	16.73
M12	1.25/1.5/1.75	10	9.64	19	18.67
M14	1.5/2	11	10.3	22	21.67
M16	1.5/2	13	12.3	24	23.67
M18	1.5/2/2.5	15	14.3	27	26.16
M20	1.5/2/2.5	16	14.9	30	29.16
M22	1.5/2/2.5	18	16.9	32	31
M24	2/3	19	17.7	36	35
M27	2/3	22	20.7	41	40
M30	2/3.5	24	20.7	46	45

Application:

Stainless Steel Hex Head Nut is most common in usage, which is mainly used for fastener one thing by the nuts. And it has requirement of the torque, and we will control the torque for customers. It is in great anti-corrosion, so it is usually used outdoor or environment.

Advantages:

1. Rich manufactiring experience
2. Many kinds of stock
3. Better price
4. Quality control

5. Sample available

6. Professional Workers

PTFE Finish Anti Corrosion Hex Head Nuts , DIN934 stainless steel fasteners Green Whitford PTFE 0
