उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
Product Name: | Hex Rod Coupling Nuts Zinc Plated Long Hex Nuts M12x36mm Right Hand Thread | Finish: | Zinc Plated |
---|---|---|---|
Material: | Carbon Steel | Grade: | Gr.4.8 |
Thread: | Coarse Thread | Thread Size: | M12 |
Customized: | Available | Length: | 36mm |
Type: | Right Hand Thread | ||
हाई लाइट: | Heavy Hex Nut,Hex Flange Nuts |

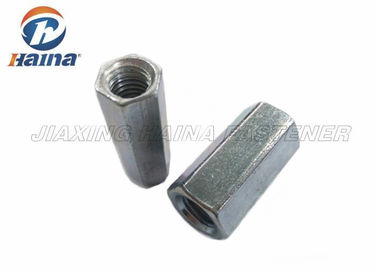

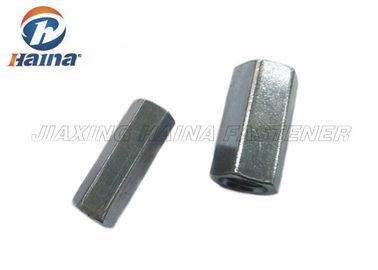

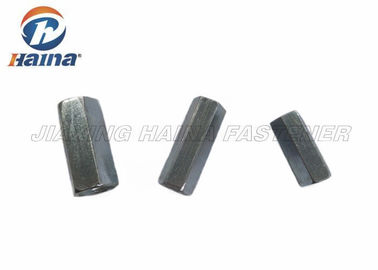

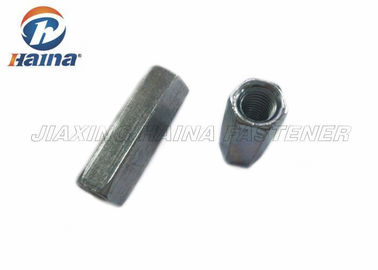

Hex Rod Coupling Nuts Zinc Plated Long Hex Nuts M12x36mm Right Hand Thread
1.Product Description
Hex Rod Coupling Nuts, also known as Hex Long Nuts, or Extension Nuts for joining two male threads, most a threaded rod. It is a lengthen hex nut so it could be install by a wrench. Hex Rod Coupling Nuts are used to connect two pieces of threaded material. Hex and heavy hex coupling nuts are threaded right hand. If a right hand-left hand coupler is needed, the sleeve nuts could be used. The Hex Coupling Nut works through the use of threads, or grooves, in the metal. One continuous male groove runs along the inside of the nut. In addition, one continuous male groove runs along the outside of the part to be secured. When these male grooves meet, they intertwine, creating a secure connection which can be tightened by hand or with a tool. This mechanism of using grooves to secure parts is called threading. There are many variations available for a standard coupling nut. Coupling nuts can be used to tighten a rod assembly inward or to press a rod assembly outward. A coupling nut is a metal fastener which is threaded on the inside. It is designed to insure two parts together by screwing the coupling nut onto the outside of another part, often a threaded rod. The outside of a coupling nut is usually hex shaped so that a wrench can be used to installation. An additional type of coupling nut contains sight hole. A sight hole on the nut allows a visual inspection of the threads on the inside, allowing verification that the threads are properly corrected.
2. Specification
Size | Opposite Side | Length | Weight |
M12 | 22mm | 36mm | 45kg/Mpcs |
More details:
Product Dimensions | M12x36mm |
Customized | Available |
Standard | DIN6334 |
Grade | Gr.4.8 Carbon Steel |
Type | Right Hand Thread, Long Hex Coupling Nuts |
Free Sample | Available, shipping need to be charged only |
Thread type | Coarse Thread |
3.Application
Hex Rod Coupling Nuts are used to make up long tie rod assemblies from shorter lengths of rod and to help assembly of two fasteners or fittings which each have external threads. The Coupling Nut can be used to tighten a rod assembly inward or to press a rod assembly outward. Coupling Nuts, for joining two male threads, most usually the threaded rod. These are used to make up long rod assemblies from shorter lengths of rods.
4.Advantages
Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.
