304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length

304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length
304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length 304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length

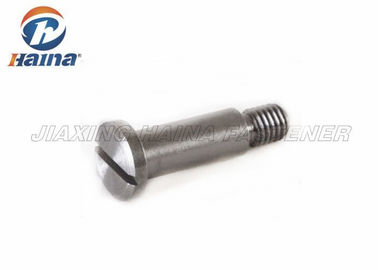

बड़ी छवि :  304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length

उत्पाद विवरण:

उत्पत्ति के प्लेस: Zhejiang, China (Mainland)
ब्रांड नाम: HNF
प्रमाणन: ISO9001:2008
मॉडल संख्या: DIN923

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 50000 pcs
मूल्य: Negotiation
पैकेजिंग विवरण: Neutral Packing, Customize Packing
प्रसव के समय: 10-15days
भुगतान शर्तें: L/C, T/T, Western Union
आपूर्ति की क्षमता: 360 ton per month
विस्तृत उत्पाद विवरण
उत्पाद का नाम: स्टेनलेस स्टील 304 M5x0.8 कंधे के साथ स्लॉटेड पैन हेड स्क्रू समाप्त: मैदान
सामग्री: SS304 लाभ: अच्छा संक्षारण प्रतिरोध
मानक: डीआईएन९२३ धागे का आकार: M5
लंबाई: 45mm सिर का प्रकार: स्लॉटेड पैन हेड विथ शोल्डर
हाई लाइट:

ss machine screws

,

flat head machine screw

Stainless Steeel 304 M5x0.8 Slotted Pan Head Screws with Shoulder





1.Product Description



The Hex Socket Head Shoulder Screws is a hex socket screw with shoulder or step, also called step screws. Some of the shoulder screw have a kurled head and some just have a smooth surface.  A hex socket shoulder screw is a type of fastener, sometimes similar to a bolt, typically made of metal, and characterized by a shoulder or step, known as a external thread.  Shoulder screws are a type of machine screw with precise threads that are only half or less of the screw. A shoulder screw has a partially smooth shank that will allow the parted material some rotation and movement around the screw axis, as the threaded end will typically have a nut to maintain the position. These shoulder screws must be used with drilled holes and are common in machinery with vibration and heat variations.

Like other screws, shoulder screws are meant to hold objects together and in position. However, they do not have a tapered shank, so they do not self-thread into soft materials. They are used in instances where pre-tapped holes require alignment with some tolerance. This allows the workpieces either a joint, pivot, or sliding motion. These screws are available in metric and imperial units.Shoulder screws have three sections: head, shoulder, and thread. The head is the largest diameter section of the shoulder screw, which prevents the screw from being inserted further than its length, and provides a bearing surface, as well as a drive mechanism (slotted, hex, etc.) so the screw can have torque applied for its installation. The shoulder is the smooth, middle section of the screw which contains the lateral movement of the workpieces. The threaded section has helixed grooves that have a major diameter slightly smaller than the shoulder diameter. This section is for insertion into a mating thread, be it a nut or tapped hole.

The most common uses of screws are to hold objects together and to position objects. The collar of the machine screw help to reducing the chance of damage to the part, and making it fasten firmly as a result of an uneven fastening surface.



2. Specification



Diameter Pitch Shank Dia. Thread Length Head Dia. Slotted Width
M5 0.8 6.964-7 7 10.73-11 1.26-1.51



More details:



Product Dimensions M5 x 45mm
Slotted Length 1.3-1.6mm
Standard DIN923-1986
Free Sample Available, only shipping need to be charged
Thread type Coarse Threaded
Advantages

Corrosion Resistance



3.Application



A shoulder screw has a partially smooth shank that will allow the parted material some rotation and movement around the screw axis, as the threaded end will typically have a nut to maintain the position. These shoulder screws must be used with drilled holes and are common in machinery with vibration and heat variations.  These fasteners are often used with nuts but also often driven into tapped holes without nuts. They might be considered a screw or a bolt based on the distinction. General Fastening applications where need high strength and superior corrosion resistance.



4.Advantages



Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.



5.More pictures

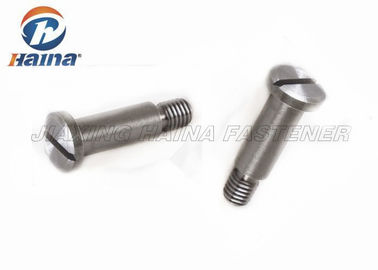

304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length 0304 Stainless Steel Machine Screws Slotted Pan Head With Shoulder 45mm Length 1
