Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery

Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery

    • Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery
    • Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery
    • Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery
    • Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery
  • Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery

    उत्पाद विवरण:

    Place of Origin: Zhejiang, China
    ब्रांड नाम: HNF
    प्रमाणन: ISO9001
    Model Number: DIN6923

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 50000 Pieces
    मूल्य: Negotiation
    Packaging Details: Carton and Pallet or Customized
    Delivery Time: 15-20 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 600 Ton per Month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Product Name: Hex Flange Nuts M8 DIN6923 Serrated Hex Flange Nuts Carbon Steel Zinc Plated Material: Carbon Steel
    Hex type: Hexagonal Flange Flange type: Serrated
    Application: Machinery Surface: Bule Zinc Plated
    Standare: DIN6923 Production Technology: Cold forged
    Diameter: M8

    Hex Flange Nuts M8 DIN6923 Serrated Hex Flange Nuts Carbon Steel Zinc Plated





    1. Product Description



    A flange nut is a nut which has a wide flange at one end that acts as an integrated, unspinning washer.

    This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part, making it less to loosen as a result of an uneven fastening surface. The flange may be serrated to provide a locking action. The combination of the hardened surface and the locking serrations on the face of the flange are designed to provide excellent resistance to loosening while vibration. The flange nuts are sometimes provided with which  a swivel flange helps to created a more stable structure without affecting the finished product like a serrated flange nut. The locking serrations are designed to minimizes the resistance to rotation when the nuts are assemble and to bite into the material being clamped to prevent the nut from unloosening.

    Flange nut is a nut, has a wide flange which acts as an integrated not washer, which serves to distribute the pressure of the nut, to reducing the chance of damage to the part and making it less to loosen as a result of an knurled fastening surface. Many sizes feature a serrated, flanged bearing surface, hex serrated flange nuts require more torque to loosen than to tighten. The Flange nuts are used in the manufacturing assembly lines where the operations are speeded using a single fastener not a nut and washer. Nuts can divide as right hand thread and left hand thread.



    2. Specification



    Type Serrated Flange Nut
    Diameter M8
    Thread Coarse thread
    Flange Dia. 17.9mm
    Wrench Size 13mm
    Pitch 1.25mm
    Thickness 7.6-8mm



    3.Application



    Flange nut distribute the clamping load across the fastening surface. The teeth acts as a mean to distributing the clamping load of the bolt across the fastening surface. A flange nut is designed to provide the same holding power as a washer. General Fastening applications where need high strength and superior corrosion resistance. Typical applications Construction, Machine repairs outdoor. Designed for using in high-stress and high-strength applications. Zinc plated offers corrosion resistance and protection and high tensile. In many industry constructure etc. applications.



    4.Advantages



    The serrated flange of the hexagonal flange nut keep the fastening from sliding while in high vibration. The combination of the hardened surface and the locking serrations on the face of the flange are designed to provide excellent resistance to loosening while vibration. Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.

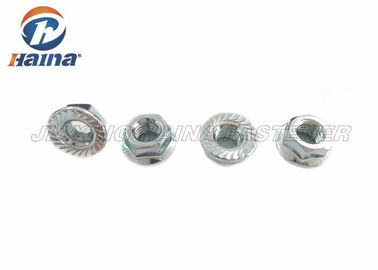

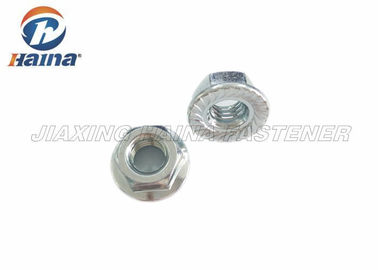

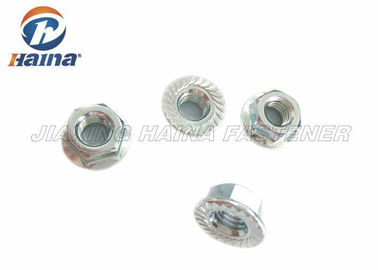

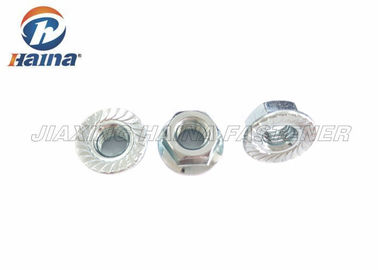

    5.More pictures



    Hex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For MachineryHex Flange Nuts Carbon Steel , Zinc Plated Serrated Flange Lock Nut For Machinery
