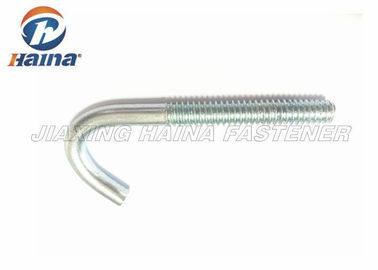

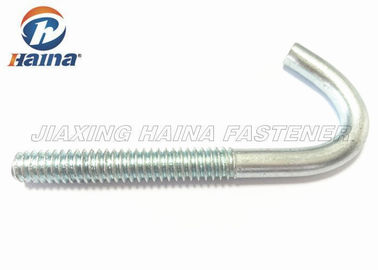

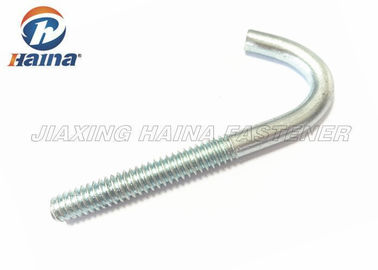

White Color Custom Fasteners J Hook Bolts M6 M8 M16 Metric Thread 12 - 1000mm

Name: White Color Custom Fasteners J Hook Bolts M6 M8 M16 Metric Thread 12 - 1000mm
Brand: HNF
SKU: M6 M8 M16
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (190 reviews)

बड़ी छवि : White Color Custom Fasteners J Hook Bolts M6 M8 M16 Metric Thread 12 - 1000mm

उत्पाद विवरण:

उत्पत्ति के प्लेस:	CHINA
ब्रांड नाम:	HNF
प्रमाणन:	ISO
मॉडल संख्या:	M6 M8 M16

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1000pcs
मूल्य:	Negotiation
पैकेजिंग विवरण:	carton +pallets
प्रसव के समय:	10-20 days
भुगतान शर्तें:	L/C, T/T, Western Union
आपूर्ति की क्षमता:	500 tons per Month

संपर्क करें

विस्तृत उत्पाद विवरण

Application:	customized	Surface Treatment:	Zinc plated
Certificate:	ISO SGS ROHS	Function:	used in various fields
Material:	Carbon Steel	Color:	WHITE
GRADE:	4.8	THREAD:	METRIC
LENGTH:	12-1000mm
हाई लाइट:	Stainless Steel Fasteners , Industrial Fasteners

Zinc Plated Class 4.8 Steel M8 Hook Bolt J Bolt Roofing Guttering Fence Weatherproof

1. Product Description

J-bolts are J-shaped bolts with machine threads for use with a nut.
They are designed for household and industrial applications and each bolt comes with a furnished hex nut

Designed to be used for fastening roofing sheets but can be used in any application (Fencing Guttering) Roofing Industry Standard.

J Hook Bolt C/W Hex Nut - Roofing Sheet / Lashing / Scaffold

DIA - Please Specify

Overall Length - Please Specify

Thread Length - Please Specify

Distance Between 'J' - Please Specify

Quantity - Please Specify

Finish - Bright Zinc Plated

Product Code - SFJBOLT

Hook Bolts & Square Nuts
Zinc Plated
Designed to be used for fastening roofing sheets but can be used in any application (Fencing & Guttering)
The length of a Hook Bolt is measured from the end of the thread to the inside of the hook.
Roofing Industry Standard

2. Specification

METRIC

M8 Metric

M8X50 M8X60
M8X70 M8X8

M8X90   M8X100
M8X110 M8X120
M8X130   M8X140
M8X150   M8X160
M8X170   M8X180
M8X190   M8X200
M8X220   M8X240
M8X260   M8X280
M8X300

INCH:

White Color Custom Fasteners J Hook Bolts M6 M8 M16 Metric Thread 12 - 1000mm 0

Size (A x B)			Inside Hook Diameter (C)	Thread Length (D)
8-32	x	1-7/8	5/16	1-1/4
10-24	x	2-1/8	3/8	1-1/4
1/4-20	x	2-5/16	7/16	1-1/2
1/4-20	x	4	1/2	2
1/4-20	x	6	5/8	2-1/2
5/16-18	x	3	1/2	2
5/16-18	x	5	5/8	2-1/2
5/16-18	x	7	5/8	3-7/8
3/8-16	x	3-3/4	5/8	2-1/4
3/8-16	x	5	5/8	2-1/4
3/8-16	x	7	5/8	2-1/4
1/2-13	x	6	1	3

3. Application

These are mainly used for fixing corrugated sheets onto roofs. These are bright zinc plated for a rust resistant finish and come complete with a hexagon nut per bolt.

These are made to order in the UK, please contact us for a price and delivery on these items.

These normally take 3-4 days to make and will be despatched as soon as we receive from the manufacturer.

4.Advantages

Jiaxing Haina Fastener Co. Ltd provide you with the highest quality products and services, and welcomes your comments, questions and concerns. Please complete the form below to send a message to our customer service department and a representative will get back to you as soon as possible.

1.we supply credible products with high quality in timely delivery.
2. All of our products are inspected by QC before packing and checked again before shipping.
3. Non-standards are available, according to your drawing or samples.
4. Standard export package or according to your requirements.

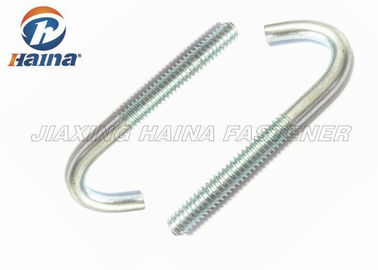

5. More pictures
