Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish

Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish

    • Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
    • Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
    • Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
    • Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
  • Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish

    उत्पाद विवरण:

    Place of Origin: Zhejiang, China (Mainland)
    ब्रांड नाम: HNF
    प्रमाणन: ISO9001
    Model Number: DIN

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 30000 pcs
    मूल्य: Negotiation
    Packaging Details: Carton and Pallet or Customize Packing
    Delivery Time: 15-20days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 650 ton per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Product Name: Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish Material: C1008 Steel
    Advantage: Resists Loosening under Vibrations Thread: Coarse Thread
    Thread Size: M16 Pitch: 2.0mm
    Grade: Gr.4.8 Finish: Color Zinc Plated

    Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish





    1.Product Description



    A Nylon Insert Hex Flange nut is a kind of Nylon lock nut, which is known as a lock nut, locking nut, prevailing torque nut, stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque. Elastic stop nuts and prevailing torque nuts are of the particular type where some portion of the nut deforms elastically to provide a locking action. Lock nuts, jam nuts, lock washes and thread-locking fluid are ways to prevent vibration from loosening a bolted joint. The nylon insert have various colors and is supplied with zinc plated finish. Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts.  A hex flange nut with a nylon filled in it. When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. However, nylon will begin to damaged at temperatures from 150-350 degree centigrade. They allow for a rapid assembly process, thereby increasing process throughput and reducing assembly costs. Be used to construction, machinery construction and other branches. It can be used with bolts,screws and other fasteners without spring and lock washer. The flange povides a reduction of pressure on the surface and special notches give extra tighten torque. This kind of connection has a very high fastness.



    2. Specification



    Diameter Pitch Height opposite side Flange Dia. Flange Thickness
    M16 2.0mm 24mm 24mm 31mm 5mm



    More details:



    Product Dimensions M16x2.0
    Item Weight 71.5kg 1000 pieces
    Surface Treatment Zinc Plated
    Free Sample Available, shipping need to be charged only
    Thread type Coarse Thread
    Advantages

    Resists Loosening under Vibrations



    3.Application



    Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts.General Fastening applications where need high strength and superior corrosion resistance. For the joining process required pressure is usually applied manually by the operator or by the machine.



    4.Advantages



    When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.

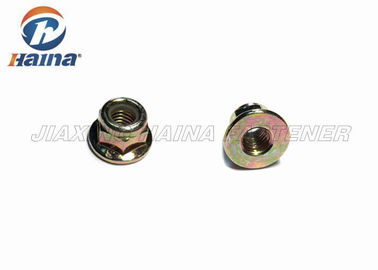

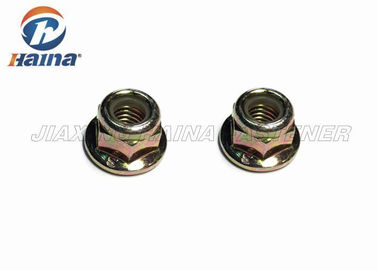

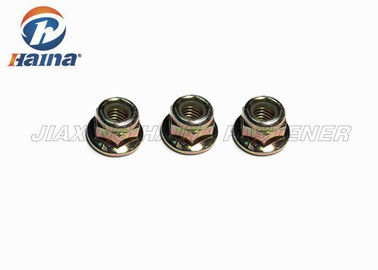

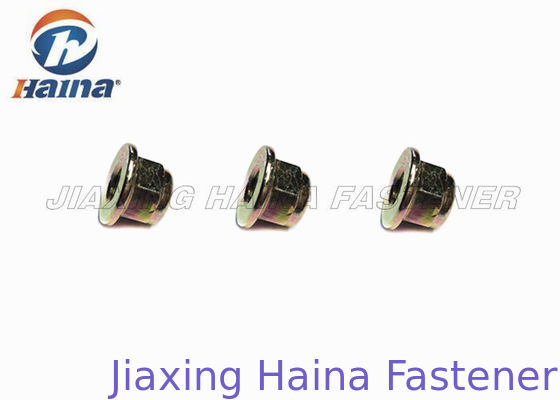

    5.More pictures



    Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated FinishStock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
