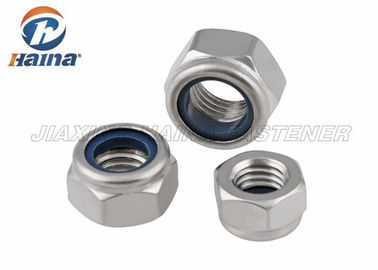

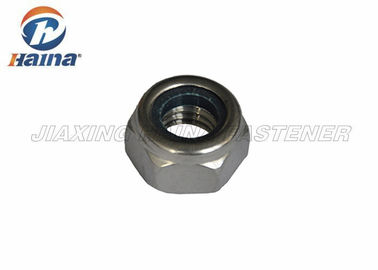

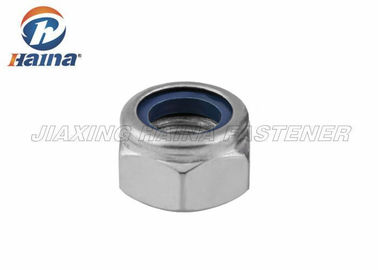

Stainless Steel A2 - 70 A4 - 80 Passivation Metric Thead Hex Nylon Inset Lock Nuts

Stainless Steel A2 - 70 A4 - 80 Passivation Metric Thead Hex Nylon Inset Lock Nuts

    • Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts
    • Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts
    • Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts
    • Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts
  • Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: HNF
    प्रमाणन: ISO9001
    Model Number: DIN985

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 100000PCS
    मूल्य: Negotiation
    Packaging Details: CARTONS +PALLETS
    Delivery Time: 5-15 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500TONS PER MONTH
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Item Name: HEX Flange NYLOC Nut Diameter: M10
    Material: Stainless Steel A4-70 Finish: plain
    Package Quantity: 100 Pitch: unc
    Sample: free grade: A2,A4
    Standard: DIN Origin: China

    Stainless Steel A2 - 70 A4 - 80 Passivation Metric Thead Hex Nylon Inset Lock Nuts





    1. Product Description



    A nylock nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of nylock nut It is a nut with a nylock collar insert that resists turning.

    The plastic insert is placed at the end of the nut, and its inner diameter (ID) is slightly smaller than the major diameter of the screw. The insert deforms elastically over the threads of the screw, but threads are not cut into the nylon. The nylon insert locks the nut by friction against the screw under the applied radial compressive force. Nyloc nuts retain their locking ability up to 250 °F (121 °C)

    Screw or bolt connection with the use, after locking nylon ring will be deformed, connecting both ends of the member to fill the gap, and thus play a locking action, such as the shape upstairs graphics.



    2.Specification



    Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts

    DIN 985 nylon lock nut
    d1 M2 M2.5 M2.6 M3 M3.5 M4 M5 M6 M7 M8 M10 M12 M14
    e min. 4.91 5.51 5.51 6.01 6.64 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49
    h max. 2.5 3.8 3.8 4 4.5 5 5 6 7.5 8 10 12 14
    m 1.6 2 2 2.4 2.6 2.9 3.2 4 4.7 5.5 6.5 8 9.5
    s 4.5 5 5 5.5 6 7 8 10 11 13 16 18 21
    d1 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
    e min. 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
    h max. 16 18.5 20 22 24 27 30 33 36 39 42 45 48
    m 10.5 13 14 15 15 17 19 22 25 27 29 32 36
    s 24 27 30 34 36 41 46 50 55 60 65 70 75



    3. Application



    Application: locking connector through the wire, or other tube.
    Nut works by using friction between the nut and bolt self-locking. However, in such a dynamic load lock reliability is reduced. In some important occasions and we'll take some anti-loosening measures to ensure the reliability of the locking nut. Locknut is one of them against rotation.
    Lock nut anti-loosening effect depends on the merits of a nut and bolt engaging interaction between threads. Engaging way to improve interaction between the threads there are many, such as structural improvements Spiralock thread nut, nylon nut nylon increasing roughness, surface treatment, thread and the like.



    4. Advantages



    As a fully integrated company, we do it all. We make the materials, build the application equipment and handle all aspects of operations from formulating custom chemical compositions and coating fasteners to providing advanced in-line inspection, packaging and delivery services. Find out how we can assist you on your next project.

    1.aluminum material,any colors could be anodized for free.

    2.M3-M5 size are available,widely used for Drones,FPV frames,RC model etc.
    3.inside with nylon,product the pitch of the screws and nuts
    4.other materials are ok,like stainless steel,steel etc.



    5. More pictures



    Stainless Steel A2 - 70 A4 - 80  Passivation Metric Thead Hex Nylon Inset Lock Nuts
