उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
Item Name: | Black HEAVY HEX NUT | Diameter: | M16-M20 |
---|---|---|---|
Material: | 45# | Finish: | Black |
Package Quantity: | 25KG | Pitch: | Fine |
Sample: | In-stock Alternative Products | grade: | 10.9 grade |
Standard: | DIN,ANSI,ISO | Origin: | China |
हाई लाइट: | Heavy Hex Nut,Hex Flange Nuts |

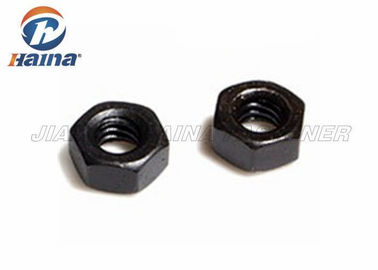

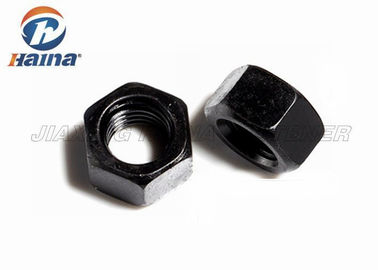

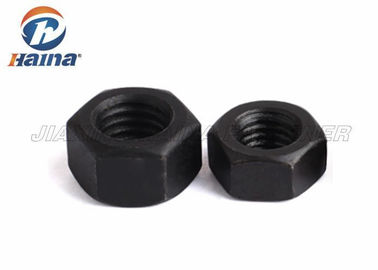

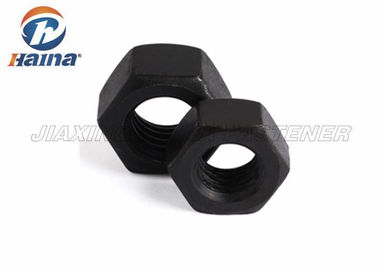

10.9 Grade DIN 934 ANSI 18. 2. 2 BG6170 Black Oxide Finished Heavy Hex Head Nuts
1. Product Description
Anodic oxidation and chemical into black oxide black, anodized black to be powered, the ultimate goal is to generate the metal surface oxide film is a dense black, to beautify the appearance, improve corrosion effect.
Hex nuts are six sided general purpose fasteners with internal screw threads.
The most common hexagonal fastener with internal threads that screws on to the shank of a bolt or a hex cap screw.
heavy hex nut
1.Standard:ISO,DIN,ANSI,JIS,BS.
2.Grade: A194 2H
3.Mark:According to customer's requirement
4.Size: 1/4"-4"
5.Finish:Plain, black, zinc plated, H.D.G and so on.
6.Material:carbon steel.
7.Delivery time:Normally in 30-40 days.
8.Quality:Top high quality.
9.Package:Cartons&pallets or according to customer's requirement.
2. Specification
Nuts Size | Pitch | s inchAcross Flat | s mmAcross Flat | m mmThickness | e (min) mmAcross Corner | Approx. weightkg/100 |
1/4 UNC | 20 | 7/16" | 11.1 | 5.06 | 12.39 | 0.32 |
5/16 UNC | 18 | 1/2" | 12.7 | 6.07 | 14.15 | 0.47 |
3/8 UNC | 16 | 9/16" | 14.3 | 8.03 | 15.95 | 0.69 |
7/16 UNC | 14 | 11/16" | 17.5 | 9.05 | 19.05 | 1.3 |
1/2 UNC | 13 | 3/4" | 19.1 | 11.01 | 21.34 | 1.6 |
5/8 UNC | 11 | 15/16 | 23.8 | 13.09 | 26.69 | 3.2 |
3/4 UNC | 10 | 1.1/8 | 28.6 | 16.03 | 31.85 | 5.3 |
7/8 UNC | 9 | 1.5/16 | 33.3 | 19.01 | 37.21 | 9.2 |
1 UNC | 8 | 1.1/2 | 38.1 | 21.08 | 42.55 | 14 |
3. Application
In normal use, a nut-and-bolt joint holds together because the bolt is under a constant tensile stress called the preload. The preload pulls the nut threads against the bolt threads, and the nut face against the bearing surface, with a constant force, so that the nut cannot rotate without overcoming the friction between these surfaces. If the joint is subjected to vibration, however, the preload increases and decreases with each cycle of movement. If the minimum preload during the vibration cycle is not enough to hold the nut firmly in contact with the bolt and the bearing surface, then the nut is likely to become loose.
4. Advantages
1).Superior quality control
We conduct strict quality control from producing to deliver. Our company has strong technical support and advanced level of technology, techniques and equipments. We have cultivated a group of managers who are familiar with product quality, modern concept of management.
2).Attractive price
3).OEM accepted
4). Your design and Logo are welcome.
5).At Your Service at 24 hours
5. More pictures
