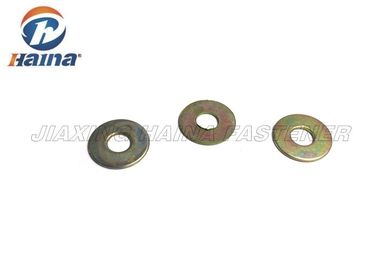

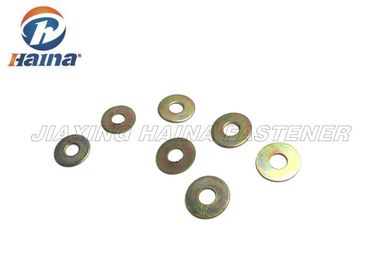

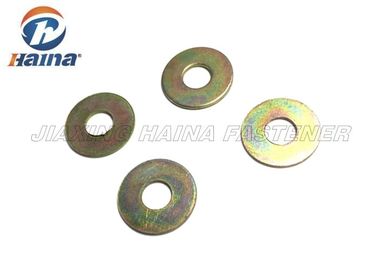

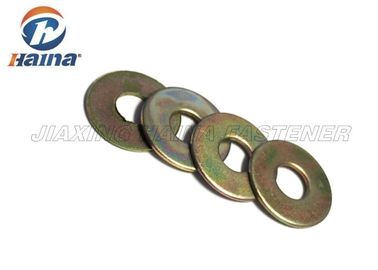

Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile

चीन Jiaxing Haina Fastener Co.,Limited प्रमाणपत्र
चीन Jiaxing Haina Fastener Co.,Limited प्रमाणपत्र
Thanks for Jiaxing Haina Fastener.Thank for Tony, Help me finish every order.We are very satisfy with each goods.

—— Steve From United States

Haina Provide me good products every time.Reasonable price and Fast delivery time.Every time I am very happy when i get goods.Thanks for them

—— Ali

अच्छी गुणवत्ता और सेवा, बहुत बहुत धन्यवाद!

—— जिम

मैं अब ऑनलाइन चैट कर रहा हूँ

Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile

Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile
Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile

बड़ी छवि :  Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile

उत्पाद विवरण:

उत्पत्ति के प्लेस: CN
ब्रांड नाम: HNF
प्रमाणन: ISO9001:2008
मॉडल संख्या: M8 M10

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 300000 pieces
मूल्य: Negotiation
पैकेजिंग विवरण: Common export packing. Cartons+Pallets, or customized packing. Bag Packing
प्रसव के समय: 15-20 working days
भुगतान शर्तें: L/C, T/T, Western Union, Paypal, Chinese Bank Account
आपूर्ति की क्षमता: 500 tons per month
विस्तृत उत्पाद विवरण
Product: Yellow Zinc Plain washer Head Drive: Round
Standard: DIN, ANSI, GB Surface Treatment: Zinc Plated
Grade: Gr4 G8, according standard Type: A Type
Size: M8 M10 Material: Carbon Steel
Mold No.: DIN125 DIN9021 F436 Service: OEM ODM
हाई लाइट:

Rubber Flat Washer

,

Flat Metal Washers



DIN125 DIN126 DIN9021 F436 Carbon Steel Yellow Zinc Plated M8 M10 Plain Washer Flat Washer

Description:



Flat washer,which is called plain washer, mainly punched out from iron plates. The common shape of a flat washer is a hole in the central. The pore size specifications according to customer requirements. We can produce as customs request. That is customization. It has many standard: DIN125 DIN9021 F436, ect.

Plain washers, which spread a load, and prevent damage to the surface being fixed, or provide some sort of insulation such as electrical

Flat washer is generally used to distribute the load of a threaded fastener, such as a bolt, scres or nut. Other uses are as a spacer, spring (wave washer), wear pad, preload indicating device, locking device, and to reduce vibration , rubber washer. Washers usually have an outer diameter (OD) about twice larger than their inner diameter (ID).

Washers are usually metal and plastic and rubber. High-quality bolted joint require hardened steel washers to prevent the loss of pre-load due to Brinelling after the torque is applied.

For 100HV level, optional ST12, ST13 and Q235, Q215, Q195 and so on, the surface hardness can reach 110HV;

For 140HV level, optional 08F, 08Al and 10,10F etc., the surface hardness can reach 140HV;

For 200HV and 300HV level, the material should be used 45,50,60,70 steel or 65Mn steel, up to 200 ~ 300HV and 300 ~ 400HV technical requirements through heat treatment and quenching and tempering.

We provide Carbon steel flat washer, plain washer, high strength washer, stainless steel flat washer, stainless steel plain washer, flat washer DIN 125 &126 & 127, round washer & Square washer, support customer's special requirements.



Specification:



Available Standard DIN125,DIN126 & DIN127 DIN9021 F436 and etc.
Specification Standard & non-standard
Material Carbon Steel, or Alloy Steel, or copper, or stainless steel as appointed.
Grade SS304 SS316 SS316L Gr4 Gr8 F436
Finish Zinc Plated, plain finish or as appointed such as Black oxide, Nickel, Chrome etc.
Packing Plastic bag & Double wall carton pack (10,000pcs Appr./ Carton, 30kg Appr./Carton). The on pallet Or do the packing according to customer's requirement.
Application Motorcycle / Buliding / Mechanical Machine / Automobile /Home Decorating etc..
Remarks Samples are free.



Specification Minor Diameter Outside Diameter Thickness Tolerance Thickness Tolerance
        Disintegration
USS 3/16 6.22~6.73 14.15~14.66 0.91~1.65 0.91~1.40
1.40~1.65
USS 1/4 7.80~8.31 18.47~19.02 1.30~2.03 1.30~1.65
1.65~2.03
USS 5/16 9.40~9.91 22.05~22.99 1.63~2.64 1.63~2.20
2.20~2.64
USS 3/8 11.00~11.51 25.22~26.16 1.63~2.64 1.63~2.20
2.20~2.64
USS 7/16 12.57~13.08 31.57~32.51 1.63~2.64 1.63~2.20
2.20~2.64
USS 1/2 14.15~14.60 34.75~35.69 2.18~3.35 2.18~2.70
2.70~3.00
3.00~3.35
USS 9/16 15.75~16.26 37.13~38.07 2.18~3.35 2.18~2.70
2.70~3.00
3.00~3.35
USS 5/8 17.30~18.24 44.27~45.21 2.74~4.06 2.74~3.20
3.20~3.60
3.60~4.06
USS 3/4 20.45~21.39 50.62~51.56 3.10~4.50 3.10~3.60
3.60~4.20
4.20~4.50
USS 7/8 23.65~24.58 56.97~57.91 3.45~4.88 3.45~4.00
4.00~4.30
4.30~4.88
USS 1 26.80~27.74 63.32~64.26 3.45~4.88 3.45~4.00
4.00~4.30
4.30~4.88



Application:


1. Increasing the contact area between the screw and the machine.

2. Elimination surface damage of the spring washer in the machine when unloading screw .

3. Flat washers are generally thin pieces of various shapes, to reduce friction, prevent leakage, isolate, prevent loosening or dispersed pressure.



Advantages:


1. ISO 9001 certification
2. The fastest response
3. High quality with competitive price
4. Strict quality control system

5. Stainless steel stock
6. Customer's design and logo are welcome


Carbon Steel Flat Washers Yellow Zinc Plated M8 M10 A Type Gr4 / G8 For Automobile 0
