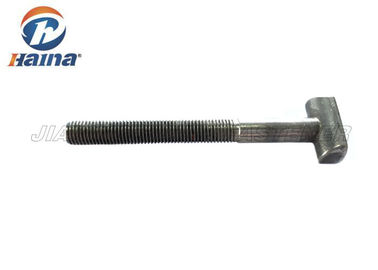

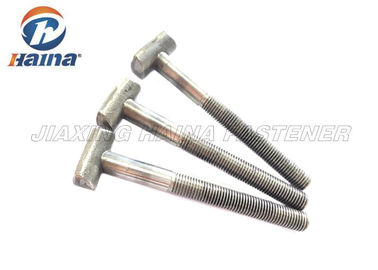

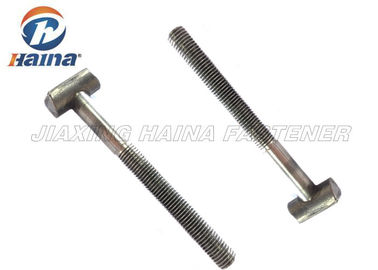

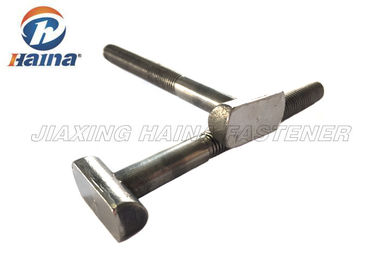

Hammer Head Screw Custom Fasteners Carbon Steel Plain Finish For Railway

बड़ी छवि : Hammer Head Screw Custom Fasteners Carbon Steel Plain Finish For Railway

उत्पाद विवरण:

उत्पत्ति के प्लेस:	China
ब्रांड नाम:	HNF
प्रमाणन:	ISO9001:2008
मॉडल संख्या:	F5201, F5202, F5203, F5204, F5205

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	900kgs
मूल्य:	Negotiation
पैकेजिंग विवरण:	Common export packing. Cartons+Pallets, or customized packing
प्रसव के समय:	10-25 days
भुगतान शर्तें:	L/C, T/T, Paypal
आपूर्ति की क्षमता:	500 tons per month

संपर्क करें

विस्तृत उत्पाद विवरण

उत्पाद:	टी बोल्ट	हेड ड्राइव:	टी हेड हैमर हेड
मोल्ड नंबर:	F5201, F5202, F5203, F5204, F5205	सतह:	मढ़वाया जस्ता
विनिर्देश:	एम8	श्रेणी:	Gr4.8 Gr8.8 Gr2 Gr5
हैमर हेड स्क्रू:	40s . के लिए ग्रूव 8	तकनीक:	कोल्ड हेडिंग
सामग्री:	कार्बन स्टील	एचएस कोड:	7318159090
हाई लाइट:	औद्योगिक फास्टनरों , यू क्लिप फास्टनरों , हैना बांधनेवाला पदार्थ

Plain Finish Class 8.8 T-Bolt Hammer Head T-Bolt Custom Fasteners for Railway

Description:

Customized T Bolts Custom Fasteners is special bolt. The head is in T type. It is different with hex head bolt in shape. But in application, they are almost same. It also has different sizes and stabdards. We can produce as customer's drawing.

Bolt is a mechanical parts, which is a threaded fasteners with a cylindrical nut. Consisting of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole. This connection type called bolt connection. As to unscrew the nuts from the bolts, but also so that the two parts separate, it bolted belongs detachable connection. We can provide customs fasteners according to drawing and samples.

T bolts are used on track line and rail way. As a holistic engineering structures, track laying play a guiding role on train. The fasteners directly bear the enormous pressure of the load. Trains run in the power of its individual components must have sufficient strength and stability to ensure that the train in accordance with a predetermined maximum speed, safe, stable and uninterrupted operation.

We can manufacture various high quality fasteners which meet the GB, DIN, ANSI, JIS and ISO standard. Also we support customized and can also manufacture non-standard fasteners according to drawing.

Specification:

Product name	Plain Finish Class 8.8 T-Bolt Hammer Head T-Bolt Custom Fasteners for Railway
Materials Available	1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
	2. Steel:C45(K1045), C46(K1046),C20
	3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
	4. Bronze: C51000, C52100, C54400, etc
	5. Iron: 1213, 12L14,1215
	6. Aluminum: Al6061, Al6063
	7.OEM according to your request

Test Equipments:	Cutting machine, automatic pre- milling machine, polishing machin, hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine, salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc.
Supply Ability:	2000 tons per month
MinimumOrder:	Not limited
Trade Term:	FOB/CIF/CFR/CNF/EXW
Payment	T/T, L/C , Western Union , paypal
Market:	South&north Amrica/Europe/East&South east Asia/ Australia and Africa etc.
Our advantage:	One-stop service; Good quality; Good price; On time delivery; Technical report; Material and Test Reports.
Notice:	Please give us the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Picturesor Samples to us

Application:

The T bolt is consist of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole.

Bolt is possible as a railway accessories, railway accessories. Bolts are part of the railway line, the track referred to herein include rails, sleepers, connecting parts, the track bed, anti-climbing equipment, track and switches and other support.

The attachment of component at the adjustable groove assembly spot on the profile bar. After attaching to the profile, the screw ensures an optimum high-strength connection.

1. Used for profile 30 series, Groove 8, Thread: M6, L=12/16/20/25mm
2. Used for profile 40 series, Groove 8, Thread: M8, L=20/25/30/35/40mm
3. Uesd for profile 45 series, Groove 10, Thread: M8, L=20/25/30/35/40mm
The T head bolts are be used in connecting.

Advantages:

1. Manufacturing Capability
2. Global Market

3. Custom Fasteners

4. Stock

5. Quick Delivery

6. One stop service

7. Anti-rust and erosion-resistance.
