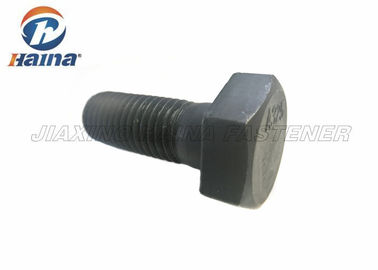

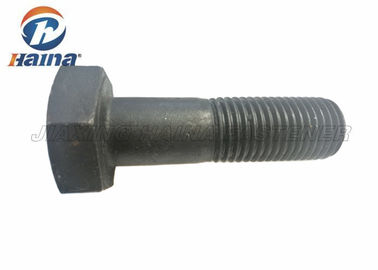

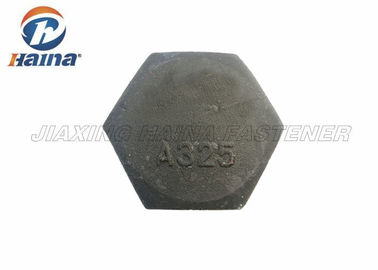

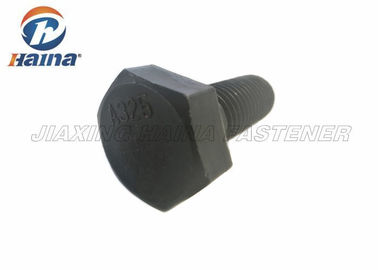

ASTM A325 A325M 8.8 Grade HDG Heavy Hex Head Bolt 3/4X2" Hex Head Bolts

बड़ी छवि : ASTM A325 A325M 8.8 Grade HDG Heavy Hex Head Bolt 3/4X2" Hex Head Bolts

उत्पाद विवरण:

उत्पत्ति के प्लेस:	China
ब्रांड नाम:	HNF
प्रमाणन:	ISO9001
मॉडल संख्या:	M16-M64

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	5000
मूल्य:	Negotiation
पैकेजिंग विवरण:	Cartons+Pallets
प्रसव के समय:	5-20DAYS
भुगतान शर्तें:	L/C, T/T, Western Union, MoneyGram
आपूर्ति की क्षमता:	500TON/MONTH

संपर्क करें

विस्तृत उत्पाद विवरण

Name:	ASTM A325 8.8 Grade HDG Heavy Hex Head Bolt M20X100 Hex Head bolts	Size:	3/4-2"
Grade:	Grade 5	Standard:	ASTM A325
Production Process:	Cold forging or Hot Forging	Used:	Building
हाई लाइट:	Galvanized Hex Bolts , Hex Flange Bolt

ASTM A325 8.8 Grade HDG Heavy Hex Head Bolt M20X100 Hex Head bolts

Product Description

Heavy bolts have a head it is larger than a standard (finish) hex head. Standard heavy hex bolts are made by middle carbon steel. The large head offers a greater bearing surface that distributes the clamping load over a greater area.

This Specification covers two types of quenched and tempered steel heavy hex structural bolts having a minimum tensile strength of 120ksi for size 1.0in and less and 105 ksi for size over 1.0 to 1-1/2 in inclusive.

The bolts are intended for use in structural connections. these connections are covered under the requirements of the specification for structural joints using ASTM A32 OR A490 Bolts,approved by the research Council on Structural connections. Endorsed by the Amercican Institute of steel Construction and by the industrial Fasteners Institure.

A325 Chemical Properties for Type 1 Bolts

Element	Carbon Steel	Boron Steel
C	0.30 - 0.52%	0.30 - 0.52%
Mn min	0.60%	0.60%
P, max	0.040%	0.040%
S, max	0.050%	0.050%
Si	0.15-0.30%	0.10 - 0.30%
B		0.0005 - 0.003%

A325 Mechanical Properties

Bolt Dia,in

TensileStrength

ksi (MPa)

Yield Strength

ksi MPa)

Elongation

%, min

Reduction of area

%, min

¹⁄₂ to 1

120.000 (825)

92.000

Over 1 to 1¹⁄₂

105.000 (725)

81.000

A325 Recommended Hardware

Nuts		Washers
Type 1		Type 1
Plain	Galvanized	Type 1
A563C, C3, D, DH, DH3	A563DH	F436-1
Notes: Nuts conforming to A194 Grade 2H are a suitable substitute for use with A325 heavy hex structural bolts. The ASTM A563 Nut Compatibility Chart has a complete list of specifications.
